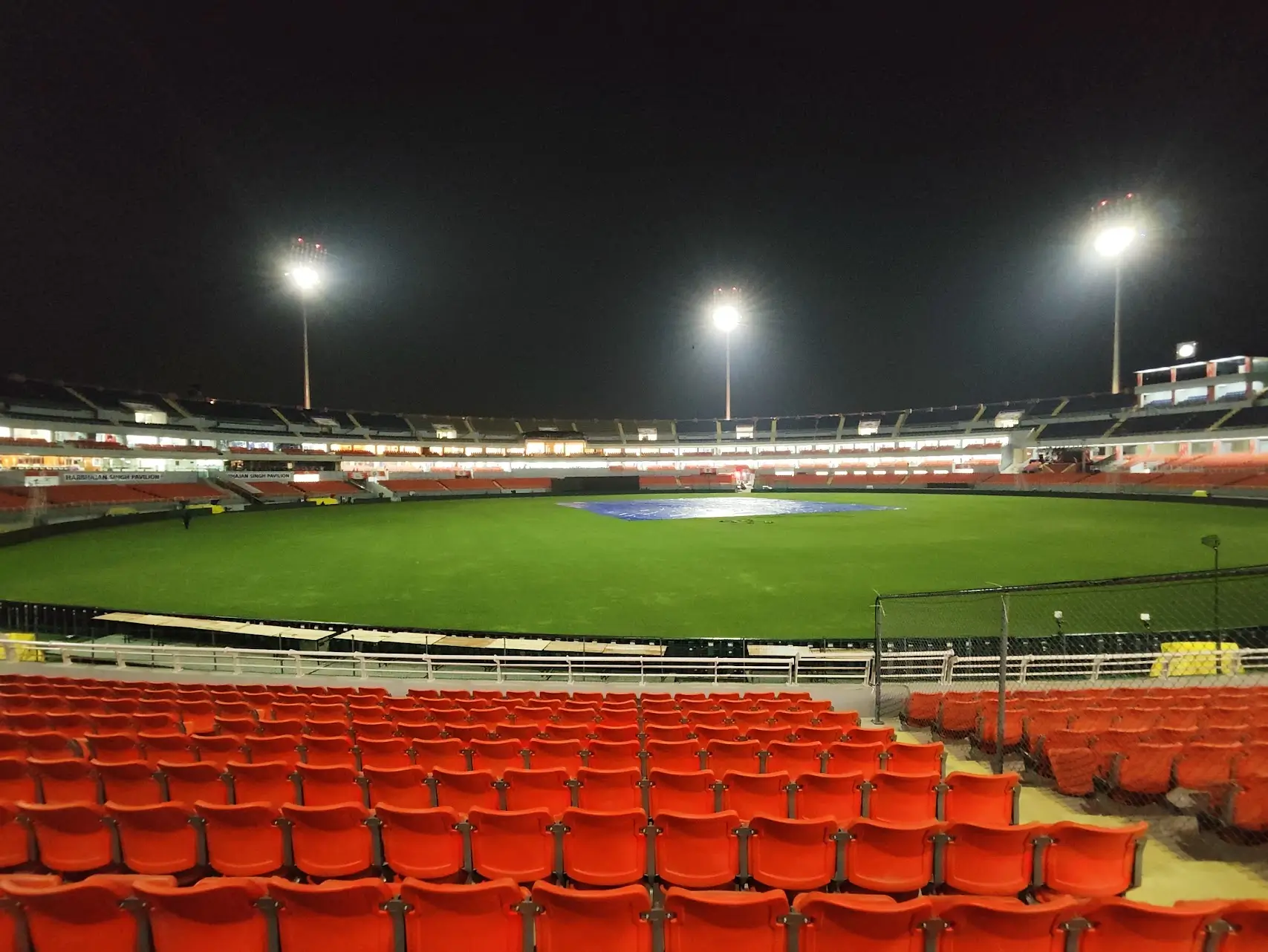

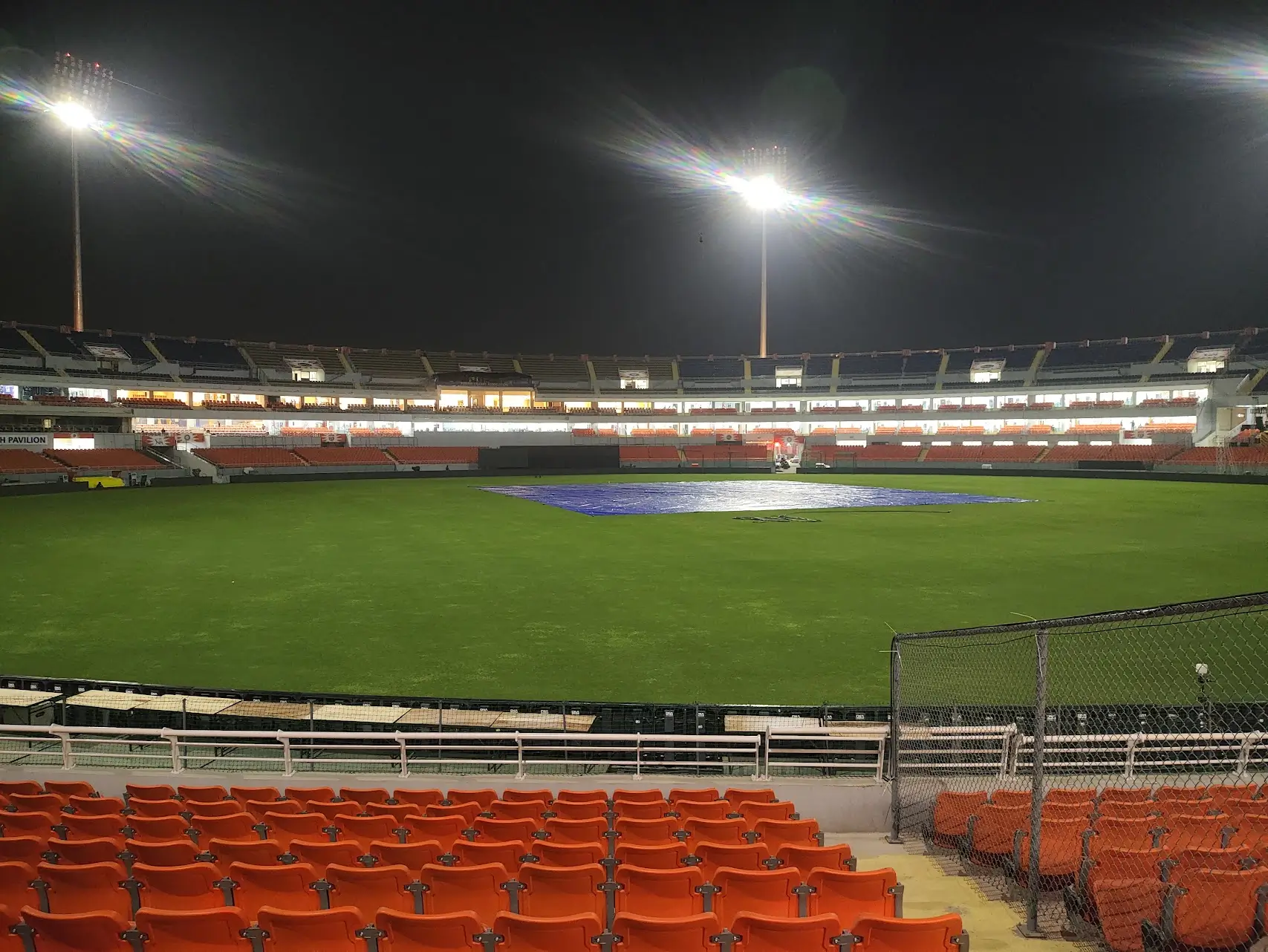

The Maharaja Yadavindra Singh Stadium in Mullanpur features an advanced herringbone drainage system, setting it apart in terms of efficiency and functionality. This system enables rapid water evacuation from the pitch and outfield, allowing matches to resume just 25 to 30 minutes after heavy rainfall. The design incorporates a central pipe with lateral branches at acute angles, reducing the need for deep excavations and simplifying maintenance due to fewer junctions.
Additionally, the stadium utilizes a sand-based surface, further enhancing drainage efficiency while complicating maintenance. As the first stadium in the region to adopt this technology, it not only leads in innovative infrastructure but also significantly influences future sports facility designs, ensuring minimal disruption from rain and optimal playing conditions.
Herringbone Drainage System at Mullanpur Stadium
The Maharaja Yadavindra Singh Stadium in Mullanpur features a notable herringbone drainage system, offering several unique benefits that improve its functionality and efficiency:
Rapid Water Evacuation
The system swiftly removes water from the pitch and outfield. Matches can resume just 25 to 30 minutes after heavy rainfall. This quick drying is vital for keeping match schedules on track, especially in areas prone to sudden rain.
Design Efficiency

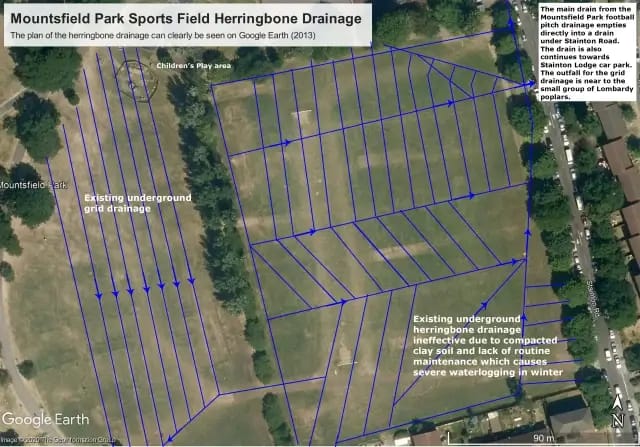

Featuring a central pipe sloping downwards with lateral pipes at acute angles, the herringbone layout requires shallower excavation than traditional systems. This makes installation less invasive and more straightforward.
With fewer junctions than other designs, the herringbone system reduces the risk of blockages and simplifies maintenance. This streamlined design facilitates easier upgrades and repairs as needed.
Sand-Based Surface
Unlike traditional soil, the stadium uses a sand base, which complicates maintenance but greatly decreases water retention. This enhances the drainage system’s effectiveness significantly. As the first stadium in the region to adopt this advanced drainage technology, the Mullanpur stadium sets a new standard for cricket grounds in Punjab and may influence future designs.
Together, these features ensure a reliable playing surface, minimizing weather-related disruptions during matches.
How does the herringbone drainage system improve match readiness?
The herringbone drainage system at Mullanpur Stadium significantly enhances match readiness by incorporating several key features that optimize the playing field’s conditions:
The system’s design facilitates swift water evacuation from the playing surface, enabling the field to dry within 25 to 30 minutes after rainfall. This quick drying capability is crucial for minimizing delays and ensuring that matches can promptly resume, maintaining schedules in professional cricket.
Effective Drain Coverage
By employing a herringbone pattern, the system ensures comprehensive drain coverage across the field. Lateral pipes connect at acute angles to a central main pipe, effectively preventing water accumulation on any part of the pitch and ensuring uniform dryness.
The herringbone design requires shallower depths for excavated drains compared to traditional systems. This feature saves time during installation and reduces disruption to the existing ground structure, facilitating quicker setup and maintenance.
Fewer Blockages
With fewer junctions than other drainage designs, the herringbone system minimizes the likelihood of blockages and maintenance issues, maintaining the field in optimal condition for matches to set ODI records.
The system’s efficiency is further enhanced by the stadium’s sand-based surface, which naturally reduces water retention. This synergy between the drainage system and field type maximizes drainage effectiveness and maintains a firm, playable surface.
Together, these features ensure that Mullanpur Stadium remains highly prepared for matches, even under adverse weather conditions, demonstrating the system’s effectiveness in maintaining high standards of playability.
What are the best practices for maintaining a herringbone drainage system?
Maintaining a herringbone drainage system effectively is crucial for ensuring its longevity and optimal performance. Here are some best practices for maintenance:
Regular Inspections
Conduct routine checks to spot signs of damage or blockages. Look for wet patches or unusual growth, which are indicators of drainage problems. Regular inspections can prevent issues from escalating. Maintain cleanliness of all drainage components. Remove debris from gutters, downspouts, and covers to avoid clogs. Regular cleaning ensures efficient water flow and prevents potential flooding.
Check Pipe Slope and Alignment
Ensure pipes maintain the recommended slope (around 1 in 150) for optimal water flow. Check alignment regularly to prevent pooling and ineffective drainage. Be aware of how landscaping changes could impact the drainage system. Avoid planting large trees near drainage lines to prevent root damage and water blockages.
Maintain Drainage Surroundings
Regularly inspect outdoor drains and catch basins for debris, especially after storms. Clearing these areas prevents overflow and ensures the system functions properly. Keep detailed records of all maintenance tasks, including inspections, cleanings, and repairs. Documentation aids in tracking system history and guiding future maintenance.
Professional Maintenance
For complex issues or suspected deep blockages, hire professionals to effectively address drainage problems without causing damage. Schedule checks before heavy rainfall seasons to ensure the system is clear and functional. This proactive maintenance helps avoid major issues during adverse weather conditions.
Following these best practices will improve the efficiency and lifespan of a herringbone drainage system, minimizing issues related to water buildup and flooding.
How does weather impact the maintenance schedule of a herringbone drainage system?
Weather significantly impacts the maintenance schedule of a herringbone drainage system in several ways:
Seasonal Inspections
The best times for inspections are in spring and late fall. Inspections are also crucial after significant rainfall events when soil is wet. This timing makes identifying blockages or leaks easier.
Inspect the system after heavy rain to ensure functionality. Increased rainfall can lead to more debris, necessitating frequent cleaning and maintenance for spectacular performances.
Temperature Effects
Extreme cold can damage drainage components, causing cracks or blockages. Inspections after winter storms are necessary to address any potential pipe damage. Weather affects soil moisture, influencing maintenance frequency. Saturated soils might need more frequent checks for sediment buildup and erosion.
Erosion Monitoring
Monitor erosion around drainage features, especially after heavy rains. Prompt monitoring is crucial to maintain structural integrity and function. Record weather events and their impacts on the drainage system. This documentation aids in scheduling future inspections based on weather patterns.
Aligning maintenance with weather patterns ensures the drainage system remains effective under various conditions.
What specific challenges might arise during the installation of a herringbone drainage system?
Installing a herringbone drainage system can present several specific challenges, including:
Complex Installation Process
The herringbone pattern demands careful planning and precise execution. It involves creating multiple trenches that slope toward a central pipe. Aligning and grading these correctly is vital for effective drainage.
Soil type significantly affects installation. Heavy clay soils with poor drainage often require deeper installations or special measures for adequate water flow. Conversely, sandy soils, while needing shallower depths, pose challenges in stabilization during trenching.
Depth and Gradient Requirements
Pipes must be buried at specific depths, typically 300-600mm, tailored to the severity of waterlogging and soil type. Maintaining the correct gradient, about 1 in 150, is essential to prevent flooding; incorrect installation can impair drainage.
The herringbone design, though having fewer junctions, can still experience blockages if misaligned or improperly installed. Correct placement of perforated pipes, with holes facing downward, is crucial to avoid future issues so that people can view spectacular performances.
Material Handling
Installation involves managing various materials like pipes, gravel backfill, and geotextile membranes. Proper placement and compaction of these materials are critical to the installation’s complexity.
Ensuring that the drainage system complies with local regulations is necessary, especially if it directs water towards public drains or adjacent properties. Obtaining the required permits can present additional challenges.
These challenges highlight the need for meticulous planning, skilled labour, and a deep understanding of drainage principles to guarantee a successful installation and long-term functionality of the herringbone drainage system.
